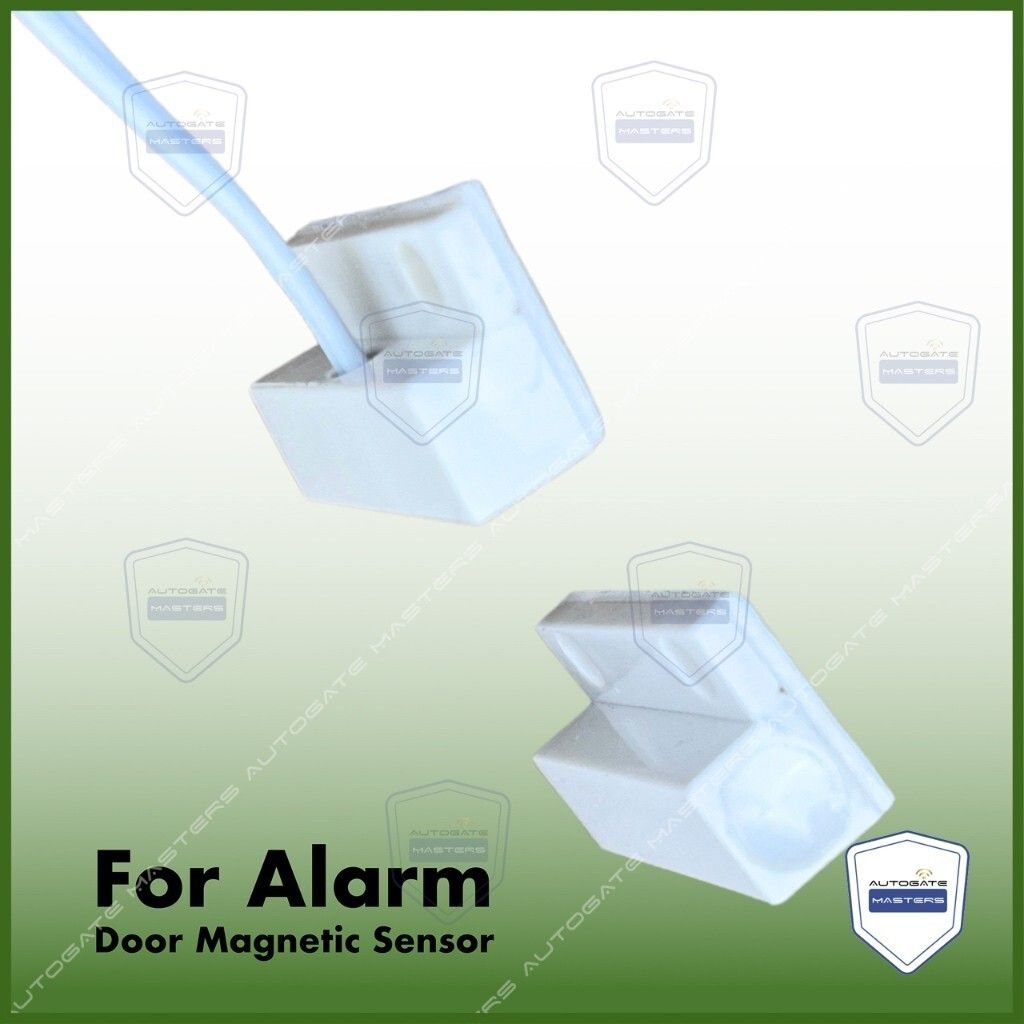

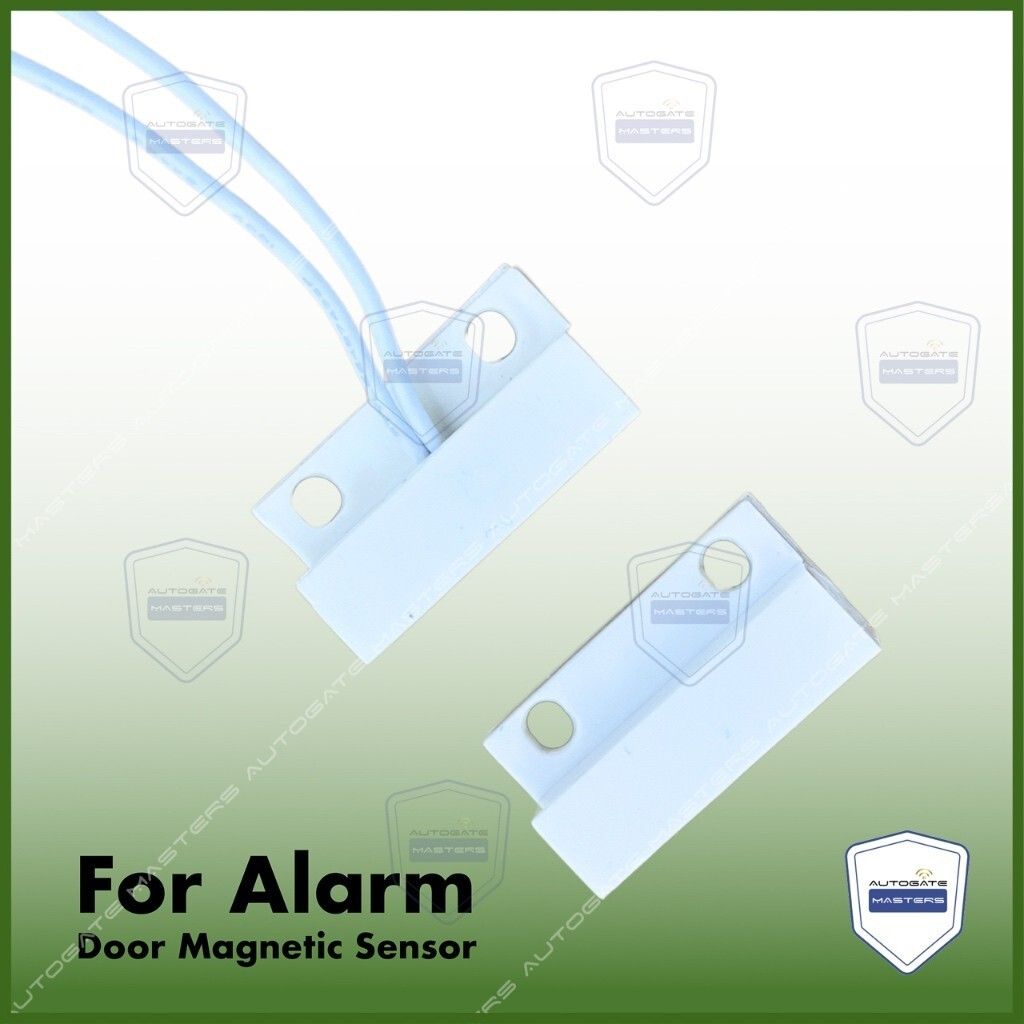

MC-38 Door & Window Magnetic Sensor Switch for Arduino / IOT / Alarm System MC38
- Regular price
- RM 5.00
- Sale price
- RM 5.00
- Regular price
-
RM 0.00
Worldwide shipping
Secure payments
Authentic products
Share
MC-38 Door & Window Magnetic Sensor Switch for Arduino / IOT / Alarm System MC38
Description
Switch output: NC (normally closed with a magnet and a signal line portion is closed together, separate is a
signal off).
Switch Type: NO(normal open type), circuit is connected when magnet is near the switch.
Application
Door and Window related.
Notes
DO NOT INSTALL AT IRON/STEEL SURFACE, it will affect the magnetic field.
Description:
Metal shield anti-fire ABS, the alarm sounds when the magnets separated. No external power supply is required-- simply connect to wired or wireless alarm control panel GND and N.C ports directly!
Specifications:
Connecting Mode: N.C.
Rated current: 100mA
Rated voltage: 200VDC
Operating distance: more than 15mm, less than 25mm
Rated power: 3W
Dimension: 28x15x0.9cm
Cable Length: 30.5cm ± 12mm
Switch output: normally closed (switch and magnet are together when the switch is closed)
Reference
You may Google search "READ SWITCH SENSOR CIRCUIT" for the application use
Package Include
1x MC-38 Door Magnetic Switch Pair
---
- The parts in the full set items( Motor, panel & transtomer - 1-year warranty )
- The parts in the full set items ( Remote control, receiver & back up battery - 3 month warranty )
- Spare part ( Not full set ) - 3 months warranty
- Hardware - No warranty
🔥 Warranty policy
- Excluding damage due to wrong connection / improper use/thunder/burn mark/ human factors/
Electricity Surged/Water Intruder.
-🔥 CLAIM WARRANTY PERIOD - Delivery cost to be borne by the customer.
**PRICE NOT INCLUDE INSTALLATION (INSTALLATION JOHOR ONLY *Other area we can find for you* )**.
